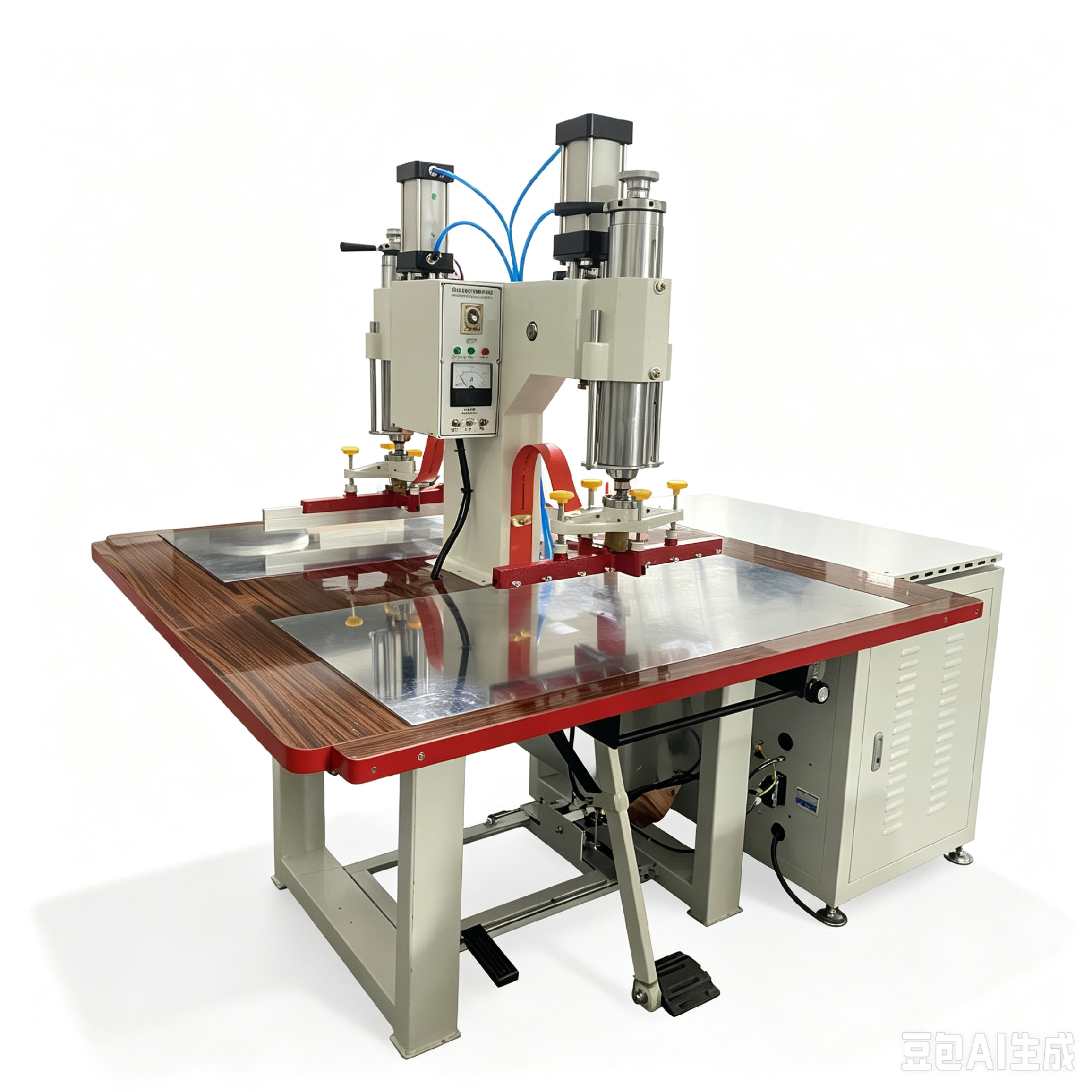

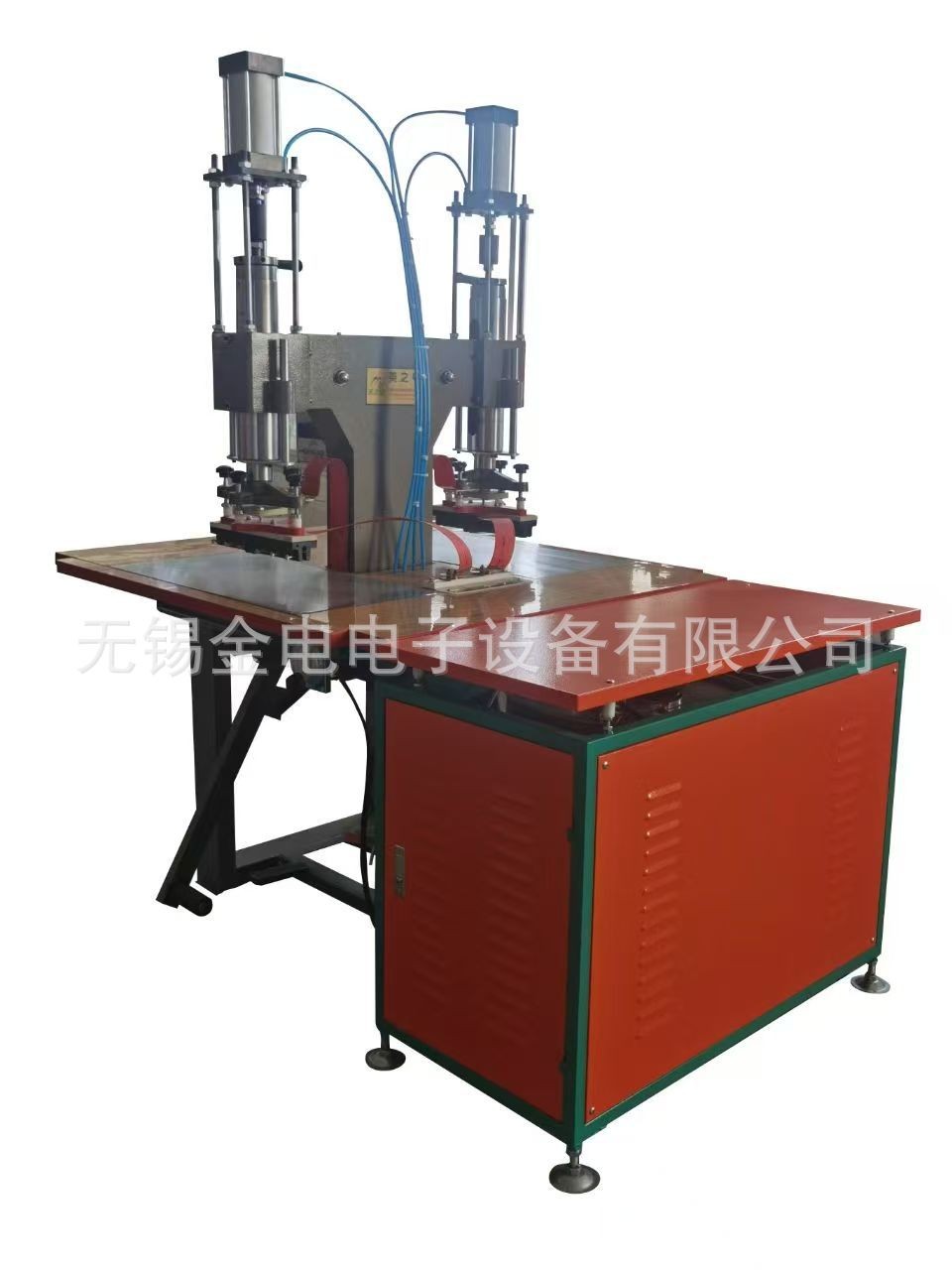

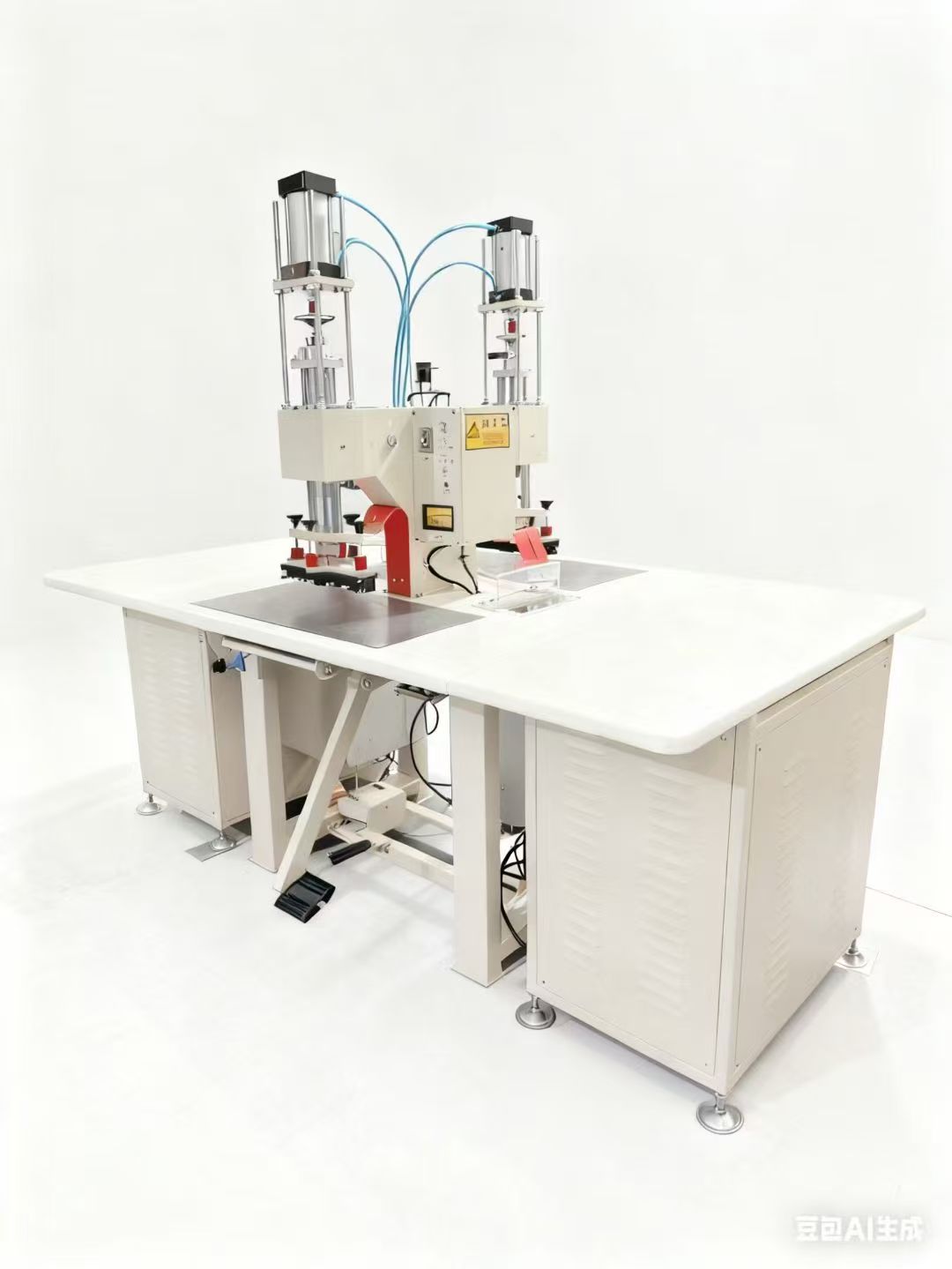

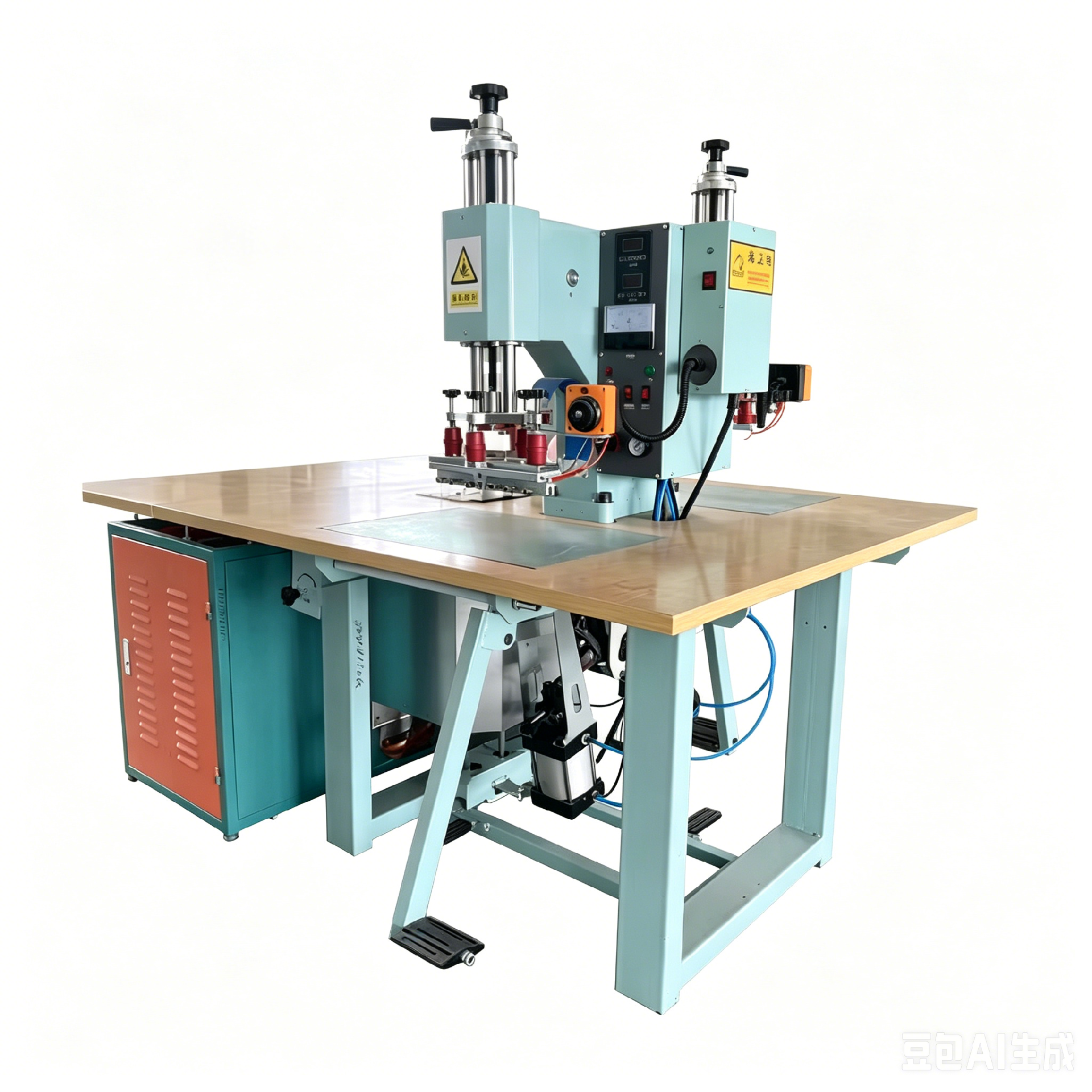

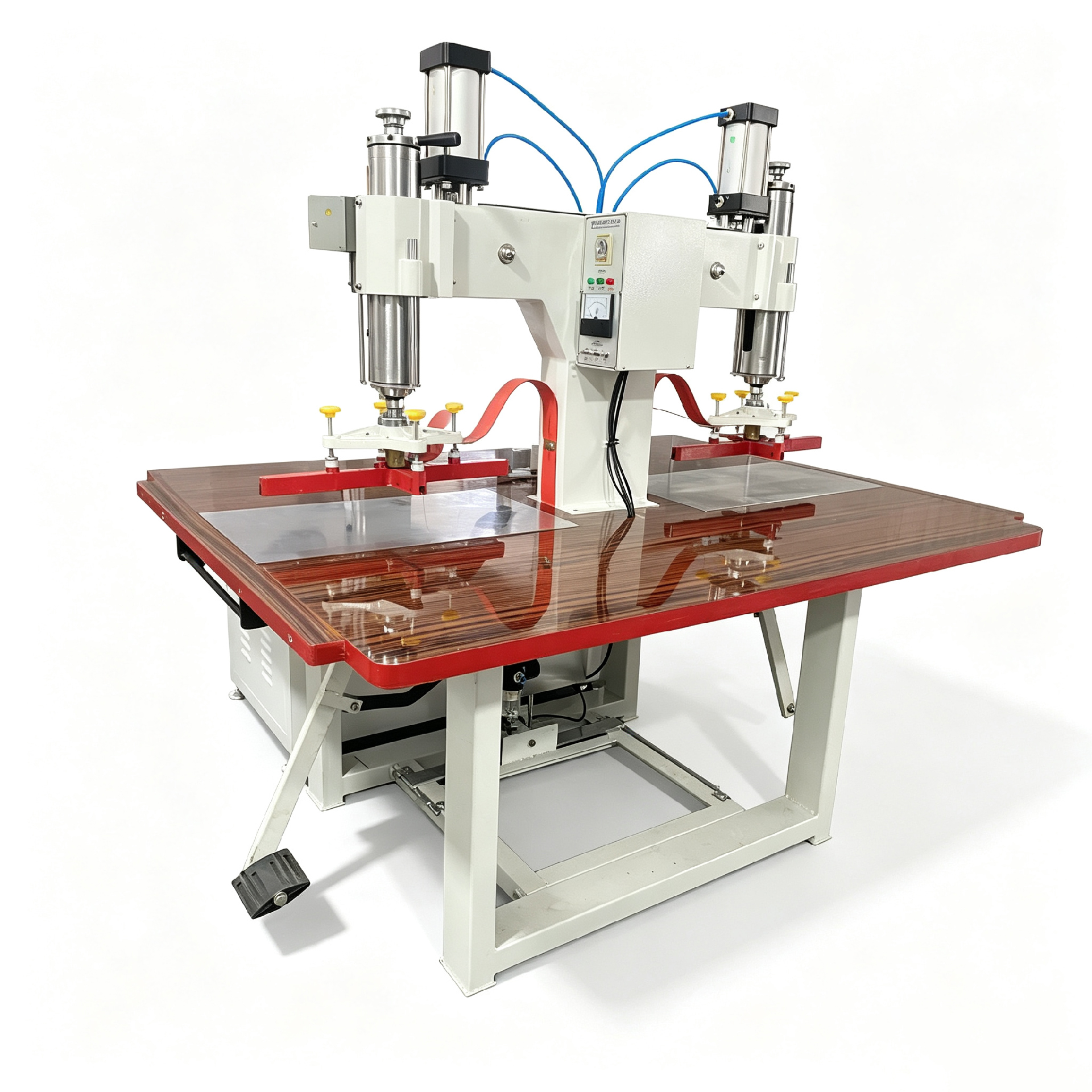

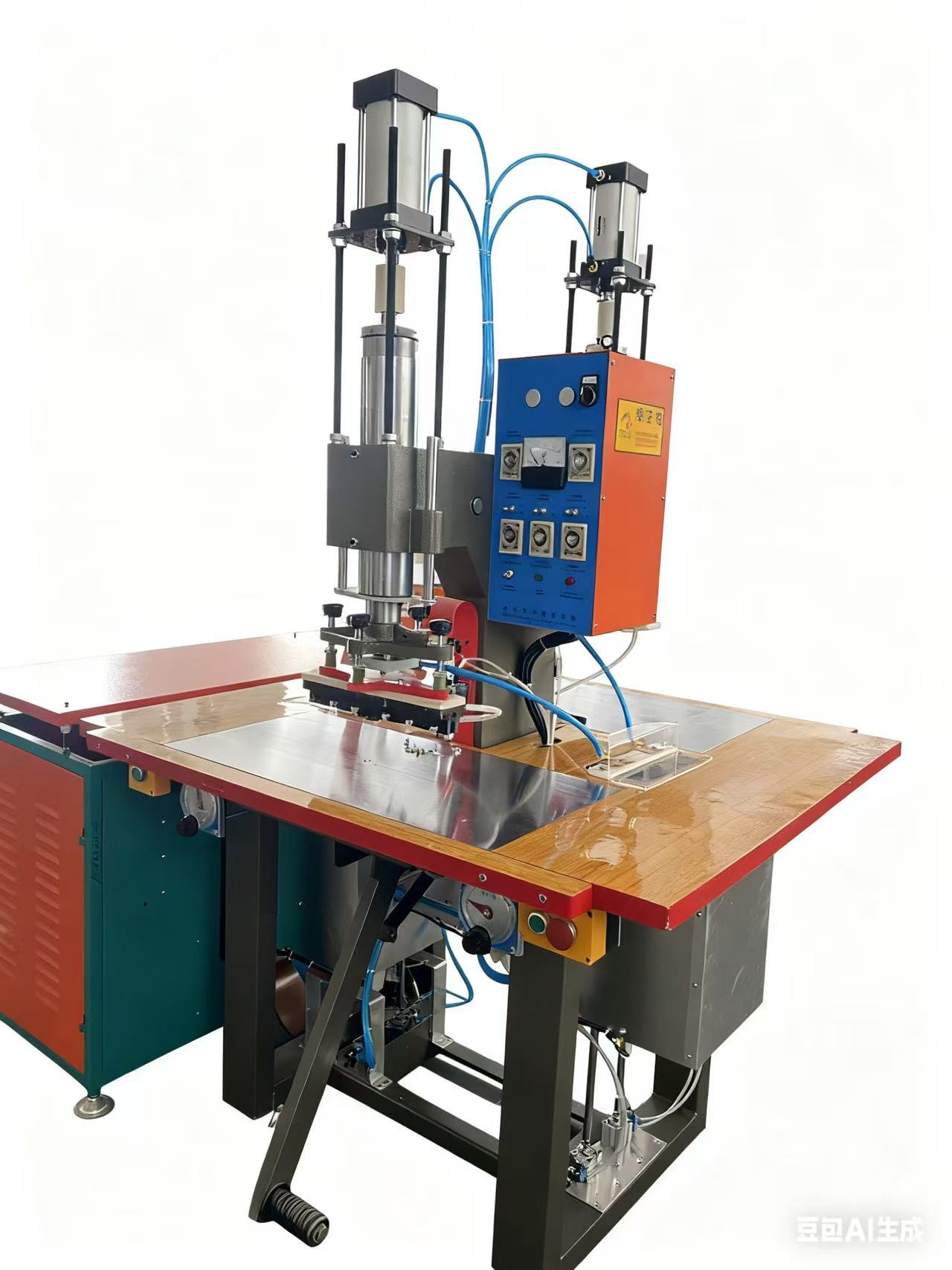

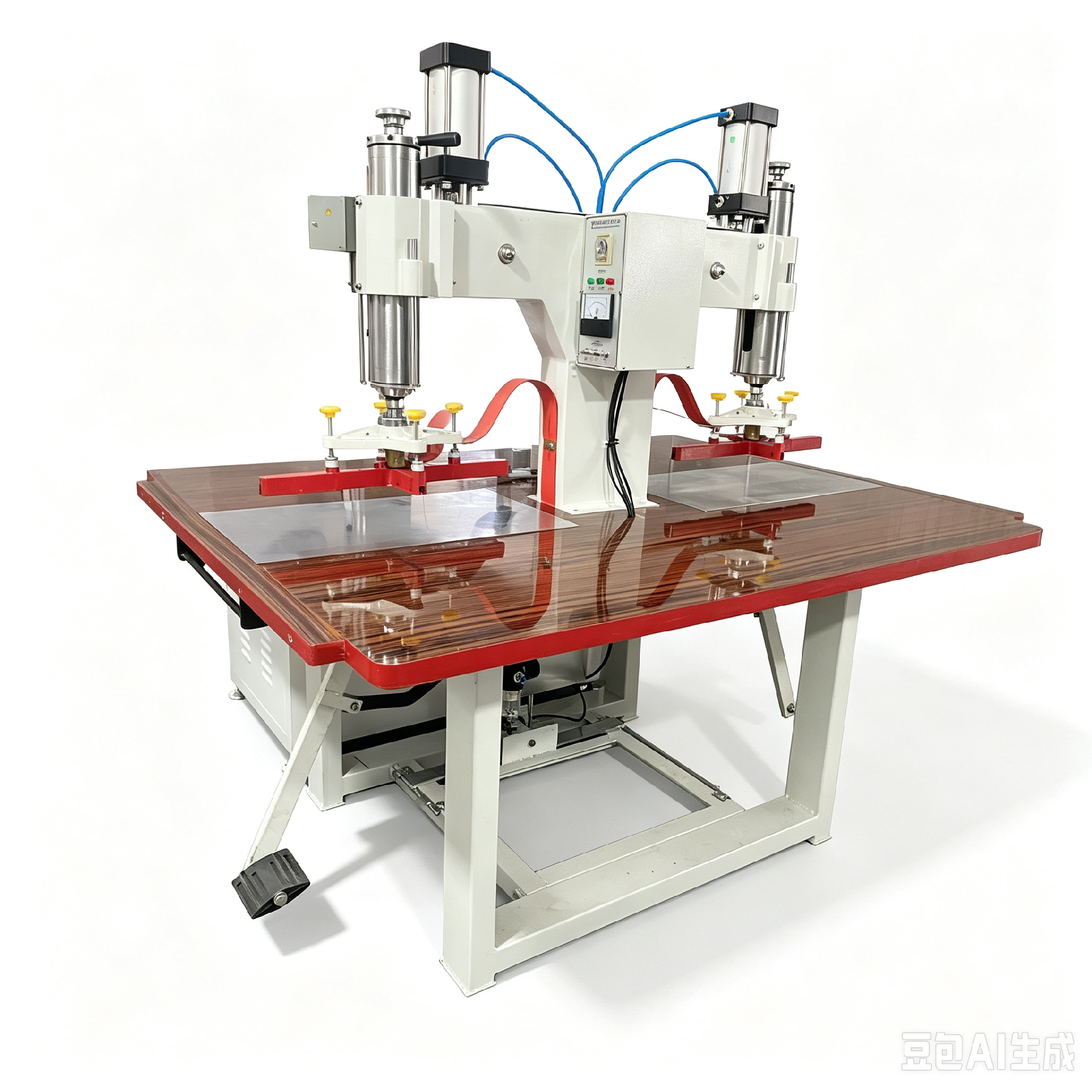

双头脚踏气动式高频机 Double-head Pneumatic Foot-operated High-frequency Machine
设备型号(MODEL)：KS-5000F/S KS-8000F/S KS-10000F/S
设备结构：双头脚踏定位+时间控制Equipment structure:Double foot pedal positioning and Time control
加温方式：电磁波感应加热Heating mode: Electromagnetic induction heating
操作方式：脚踏定位+时间控制Operation mode:Foot positioning and Time control
基本特点：Basic features：
1、高频频率27.12MHz, 符合国际标准1、high frequency27.12MHz, in line with international standards
2、下台面采用铁铸造，导热效果极佳2、The bottom mesa is made of aluminum and has excellent heat conduction effect.
3、强力式机头，压力可以随意调节3、Strong head, pressure can be adjusted at will
4、高频电磁波辐射符合行业要求4、High frequency electromagnetic wave radiation environmental protection industry standard
5、自动过流保护系统5、automatic overcurrent protection system
6、自动火花保护系统6、Automatic spark protection system
主要用途：Main application:
适合加工PVC、TPU、EVA等塑胶材料熔接封口，如PVC包装袋、识别带、TPU薄膜、皮革压花、卷帘门、PVC夹网布、软膜天花、银幕、医疗用品、热水袋等。
Melt is suitable for the processing of PVC, TPU, EVA plastic material and a sealing, such as PVC packaging bag, with identification, TPU film, leather embossing, rolling shutter door, PVC clip net cloth, soft film smallpox, screen, medical supplies, hot water bag etc..
设备参数：
Machine parameters:
设备型号(MODEL) | KS-5000F/S | KS-8000F/S | KS-10000F/S | |
高频输出(output power) | 5KW | 8KW | 10KW | |
高压输入(power input) | 8.5KVA | 13KVA | 16KVA | |
电源电压(power voltage) | 380V/50Hz | |||
震荡频率(oscillation) | 27.12MHz | |||
整流器(rectifier) | 矽二极管(Silicon diode) | |||
加压方式(way of pressure) | 气动式(Air pressure) | |||
机械活动距离(distance of machine moving) | 70mm | 85 | ||
冷却方式(way of cooling) | 风冷Air cooling | |||
电子管(Electron tube) | 7T85RB | 7T69RB | E3069 | |
下压板尺寸(size of Lower press plate) | 350*700mm
| 450*850 | ||
上压板尺寸(size of Upper edge pressure) | 30*320mm | 35*350 | ||
设备尺寸(size of machine) | 1700*1140*1750mm | 1800*1250*1800 | ||
设备重量(Weight of machine ) | 350KG | 400KG | 550KG | |
设备商标 (Trademark of machine ) | 美之电 | |||
整板切割 结构稳固寿命长
美之电高频机板材板型及厚度根据排面大小，整板切割定制，保证大功率一样平整稳定，长久使用不变形。
出口CE认证，高频电磁波辐射安全达标，进口防打火装置，高灵敏火花保护操作及自动过电流等，保障质量。
专业团队 技术服务有保障
全程提供技术支持（电话+远程+现场），提供设备安装服务，硬件维护服务及软件升级服务，全套保障服务
